Name: Biscuit Rotary Bakery Machineries
SKU: 25040
Availability: InStock

Biscuit Rotary Bakery Machineries

0,00 €

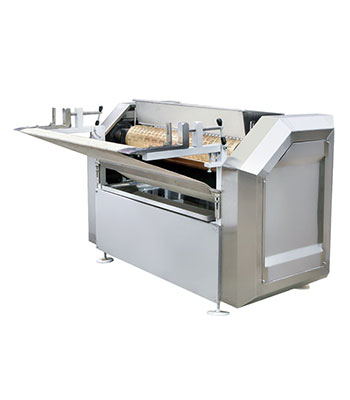

Rotary Biscuit Machine:

Used for producing soft biscuits.
Equipped with stainless steel tank for dircting dough on moulds.
Equipped with motor with gearbox and electronic board for controling biscuit production speed.
Equipped with E-Panel and electronic board.

Specifications
Dimensions	200 * 150 * 120 cm
Power Consumption	3kw – 380v – 3phase

Description

The Complete Automatic Line for Biscuit production

No.	Description of Machinery & Equipment according to Layout	Qty
1	Double Z Mixer	1
2	Biscuite Rotary	1
3	Tunnel Oven OMTO100	1
4	Cooling Conveyer ( Length: 15m)	1
5	Stacking Machine	1
6	Cooling Conveyer ( Length: 15m) to packing machine	1

The Complete Line of Biscuit Lamination and Rotary Machine

Biscuit Rotary Machine
-Used for producing soft biscuits
-Equipped with stainless steel tank for directing dough on moulds
-Equipped with motor with gearbox and electronic board
-Equipped with E-panel and electronic board

Specifications
Dimensions	2000 x 1500 x 1200mm
Control system	Electronic board & P.L.C
Power Consumption	3 kw – 380 v – 3 ph

Double Z Mixer

This machine is consisted of :

Double Z Mixer is used to mix primary dough ingredients.

-The machine is designed with double jacket bowl.

-Equipped with hydraulic system for automatic discharge of dough

-Equipped with E-Panel and electronic board.

Tunnel Oven OMTO100

Tunnel Oven Model OMTO100

-Equipped with 3zone (each zone 10m) and inlet and outlet 3m ,Baking Length:30m and Tunnel Oven length:36m

For baking types of cookie and biscuits.

-Capability of belt placement with 100cm width

-Equipped with 3 baking zones each zone 10m , inlet and outlet 3m.Baking Length: 30m

-All Burners are nonflammable stainless steel.

-The burners is be for Natural Gas or Gasoline Both.

-All parts of the chase are well connected with bolt and nut.

-There is an Isolation of 30cm in above and 20cm on sides, all round the baking area.

-The movement of the band in frontward and backward movement is made on Rollers with bearings having 90cm diameter.

-Automatic Band Adjustment is done by sensors and Mechanical system.

-Each zones is equipped with temperature control system in burner part and on the belt which is adjustable with thermocouple and thermostat.

-Each zone is equipped with one circular fan for hot air and each oven is equipped with two steam evacuation system.

-Heat transfer of the oven is made via pipes and each pipe is equipped with damper , which controls the heat accurately in each part of the belt.

-Equipped with electromotor with gearbox for belt movement.

-Equipped with electronic board, PLC control system and touch screen panel for adjusting each zone temperature and belt movement, etc.

Cooling Conveyer ( Length: 15m)

Cooling Conveyer ( Length: 15m)

-Used for cooling product

-Equipped with stainless steel chassis with 4 cooling fan

-Equipped with E-panel and electronic board

Stacking Machine

Stacking Machine:

-Stacking machine to align the biscuit products.

-Equipped with guide in which the products are transferred and rearranged vertically for easy manual transfer of the product to the packing machine.
