EEG sensitivity | ±450µV |
Noise | <2µVp-p <0.4µV RMS, 0.25-250 Hz |
CMRR | >140dB |
Input impedance | >50MΩ |
Sample rate | 1000 samples/sec(16 bits equivalent) |
Brain Function Index (BFI) | 0-100. Filter 1-47Hz, 1sec. update |
EMG | 0-100. Filter 30-47 Hz,1 sec. update |
BSR | 0-100. Filter 2-47 Hz, 1 sec. update |
Signal Quality Index (SQI) | 0-100. 1 sec. update |
EEG Waveform | ±250µV, user-adjustable, 5 sec |
Alarms | Auditory and visual, user-adjustable limits |
Artifact rejection | Automatic |
Sensor impedance measurement | 0-30kOhm / Manual-Automatic/ measurement current 0.06µA |
Power supply | 5 VDC |
Power Consumption | Less than 0.5 W |
Weight | 100 gr |
Dimensions | 111×64×25 mm |
Classification | Class I, type BF, continuous use |
Memory | Data recording (96 hours) |
Trend | BFI/EMG/SQI/BS, 10 sec. update |
Environment – Operation | Temperature 5-40°C
Humidity 20~96% Altitude -200~3000m |
Accessories | |
Cable length | 195 cm/ 77” with 35 cm/ 14” split from module to sensor connector.
190 cm/75” from module to Vital Sign monitor. |
Electrode Producer | Ambu Neuro Surface Electrode |
Single Use Electrode | Yes |
Sensor material | Silver/silver chloride |
Electrode/ Skin contact size (each electrode) | 30mm x 22mm |
Adhesive area | 461mm2 |
Gel area/measuring area | 95mm2 |
Gel system | Wet gel |
Sponge | Polyurethane foam |
Outer adhesive | Acrylate |
Latex free | Yes |
Shelf Life (Unopened pouches, in months) | 12 |
Shelf Life (open pouches, in months) | 1 |
Skin preparation gel | Nuprep gel |

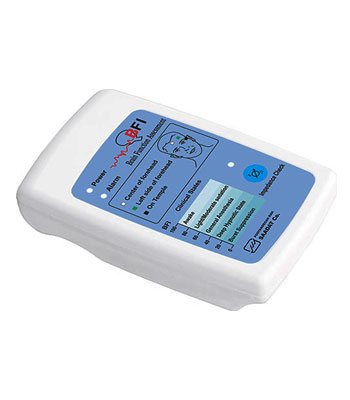

Brain Function assessment – Medical Device
0تومان
The BFI is a direct measure of the effects of anesthetic agents on the brain and patient’s level of consciousness
Using three sensor placed on the patient’s forehead, BFI translates brain electrical activity into a single number berween 100 (awake) and zero (isoelectric EEG)
Categories: Hospital Equipment, Medical Device
Description
