Specifications | unit | FD50 | FD60 | FD70 | ||
---|---|---|---|---|---|---|
Characteristics | Power | diesel | diesel | diesel | ||
Rated Capacity | kg | 5000 | 6000 | 7000 | ||
Center of load | mm | 600 | 600 | 600 | ||
Lifting height | mm | 3000 | 3000 | 3000 | ||
Free lifting height | mm | 203 | 208 | 218 | ||
Forks L×W×H | mm | 1220×150×55 | 1220×150×60 | 1220×150×70 | ||
Tilt Forward/Backward | 。 | 6/12 | 6/12 | 6/12 | ||
Min.turning radius | mm | 3250 | 3370 | 3370 | ||
Min.ground clearance(Mast) | mm | 200 | 200 | 200 | ||
Overhead guard height | mm | 2460 | 2460 | 2460 | ||
Height from seat to overhead guard | mm | 1050 | 1050 | 1050 | ||
Front overhang | mm | 610 | 615 | 625 | ||
Perf | Max.traveling speed(loaded) | km/h | 26 | 26 | 26 | |
Max.lifting speed(loaded/empty) | mm/s | 370/450 | 370/450 | 370/450 | ||
Drawbar pull/Gradeability | kN/% | 51.4/20 | 51.4/20 | 51.4/20 | ||
Dimensions | Overall length (without fork) | mm | 3431 | 3431 | 3466 | |
Overall width | mm | 2235 | 2235 | 2235 | ||
Mast lowered height | mm | 2500 | 2500 | 2500 | ||
Mast extended height | mm | 4417 | 4417 | 4417 | ||
Chassis | Tire | Front | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | |
Rear | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | |||
Wheelbase | mm | 2250 | 2250 | 2250 | ||
Tread width | Front/Rear | mm | 1470/1700 | 1470/1700 | 1470/1700 | |
Curb weight | None-load | kg | 7980 | 8640 | 9340 | |
Powertrain | Battery | Voltage/Capacity | V/Ah | (12/90)x2 | (12/90)x2 | (12/90)x2 |
Engine | Model | CY6102BG6 | CY6102BG6 | CY6102BG6 | ||
Rated power | kw/r.p.m | 81/2500 | 81/2500 | 81/2500 | ||
Rated torque | Nm/r.p.m | 353/1700 | 353/1700 | 353/1700 | ||
Cylinder amount | 6 | 6 | 6 | |||
Bore×Stroke | mm | 102×118 | 102×118 | 102×118 | ||
Displacement | 5.785 | 5.785 | 5.785 | |||
Fuel tank | L | 140 | 140 | 140 | ||
Transmission | 1/1 automatic transmission | |||||
Working pressure | MPa | 20 | 20 | 20 |

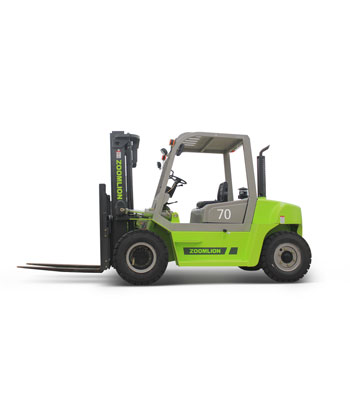

Lifttacs Zoomlion Fd50 Fd60 Fd70 5t 6t 7t New Diesel Forklift
0تومان
Min. Order: | 1 Unit |
---|---|
Port: | Shanghai, China |
Production Capacity: | 10000 |
Payment Terms: | L/C, T/T, D/P |
Category: liftrucks
Description
