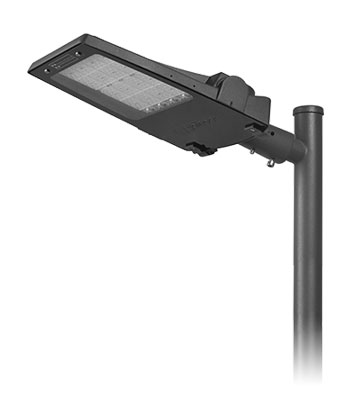

Name: SOHEIL 2 Outdoor Lighting
SKU: 13488
Availability: InStock

SOHEIL 2 Outdoor Lighting

0,00 €

electrical characteristics

parameter	150W	100W
nominal input voltage and frequency (V-AC/Hz)	230/50	230/50
input voltage and frequency range (V-AC/Hz)	50~60/180~265	50~60/180~265
nominal input power w	150	100
Nominal input current a@v	0.69@230	0.46@230
power factor	>0.95	>0.95
led module operating voltage v dc	48	24
total harmonic distortion thd	<15%	<15%
led module type	Integrated	Integrated
class of protection against electric shock 230v	I	I

Description

Optical Characteristics

parameter	150W	100W
light source led	SMD LED	SMD LED
number of leds in the module pcs	144	96
nominal power of led w	1.5	1.5
luminous flux lm	16500	11000
luminous efficiency lmw	110	110
color temperature k	3000,4000,5000,6500	3000,4000,5000,6500
color rendering index	75	75
sdcm initial and value	5SDCM	5SDCM
photometric code	730/559,740/559,750/559,765/559	730/559,740/559,750/559,765/559
lumen maintenance code	9	9

Mechanical characteristics

ingress protection ip	IP66
body material	Aluminum die-cast
Diffuser Material	Tempered glass
body coating	Electrostatic powder painting
Pipe holder diameter (mm)	Ø42-48
weight kg	5.4

General Characteristics

rated ambient temperature tq related to performance for the luminaire	25
working temperature range °c	-20 ~+35
maximum allowed humiding %	95
rated median useful life l 70 b 50 hrs	50000
rated abrupt failure value %	15

product code

power	150W	100W
code	378150	378100

global standards

IES LM – 80

Measuring Luminous Flux and Color Maintenance of LED Packages, Arrays and Modules

Dimension

dimension

Dimension

Photometric
